300W Outdoor Cabinet Air Conditioner

Product Categories
Suzhou Langji Technology Co., Ltd.
Contact Now

300W Outdoor Cabinet Air Conditioner

Brand Name : Langji

Model Number : SAD103-2

Certification : ISO9001, ISO14001 CE, 3C, IP55

Place of Origin : China

MOQ : 1 pc

Price : USD 100~250/unit

Payment Terms : T/T, Western Union, L/C,PayPal

Supply Ability : 5000 pcs / month

Delivery Time : 15~25 working days

Packaging Details : Wooden case with pallet or just export pallet

Name : Outdoor Cabinet Air Conditioner

Model : SAD103-2

Cooling capacity : 300W

Voltage : AC220v, 50Hz

Weight : 16Kgs

HxWxD (mm) : 583x353x165

Contact Now

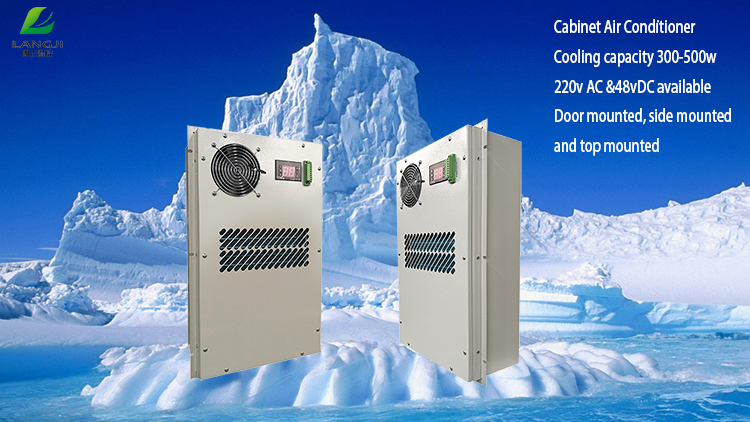

300W AC Air Conditioner for Electrical Cabinet Cooling



Cabinet air condition is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

  1. Compact structure, reasonable design and easy maintenance;
  2. Cooling capacity ranges from 300W to 5000W.
  3. Widely used for outdoor telecom cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
  4. The protective level is IP55, can run at high ambient environment 55ºC.
  5. Voltage range: AC220v, 50Hz/60Hz; AC110v, 60Hz; DC-48V.
  6. Mounting: door, side and top mounted available.
  7. Digital temperature controller and high precision of temperature control.
  8. The refrigerant is R134a. The compressors are highly and panasonic.
  9. CE certified, which can meet EU RoHS requirements.

Langji AC air conditioner Technical Data Sheet

Model Cooling capacity (L35/L35) Rated Voltage (V/ph/Hz) Rated current (A) Related power (L35/L35) HxWxD (mm) Weight (Kgs)
SAD103-2 300W/1000BTU 220/1/50 1.25 220 583x353x165 16
SAD104-2 400W/1350BTU 220/1/50 1.30 240 583x353x165 16
SAD105-2 500W/1700BTU 220/1/50 1.50 320 583x353x165 16
SAD106-2 600W/2000BTU 220/1/50 1.63 360 692x455x155 21
SAD108-2 800W/2700BTU 220/1/50 1.86 410 692x455x155 21
SAD110-2 1000W/3400BTU 220/1/50 1.93 426 791x491x188 32
SAD112-2 1200W/4000BTU 220/1/50 2.20 485 791x491x188 32
SAD115-2 1500W/5000BTU 220/1/50 2.75 605 791x491x188 32
SAD120-2 2000W/6800BTU 220/1/50 3.38 745 1087x460x188 42
SAD125-2 2500W/8500BTU 220/1/50 4.09 900 1087x460x188 42
SAD130-2 3000W/10200BTU 220/1/50 5.63 1240 1208x549x220 60
SAD135-2 3500W/12000BTU 220/1/50 6.18 1360 1208x549x220 60
SAD140-2 4000W/13500BTU 220/1/50 6.73 1550 1208x549x220 60
SAD145-2 4500W/15300BTU 220/1/50 7.28 1610 1208x549x220 60
SAD150-2 5000W/17000BTU 380/3/50 3.00 1980 1640x672x297 100

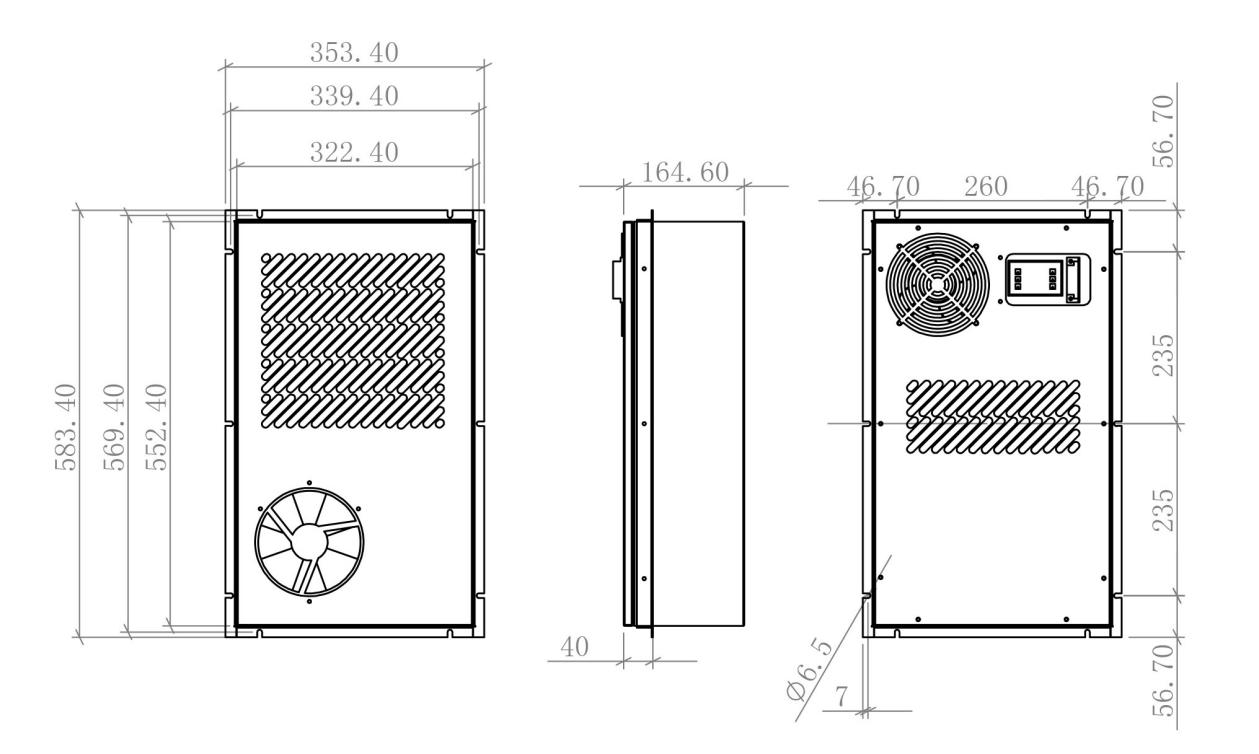

300W Installation Drawing

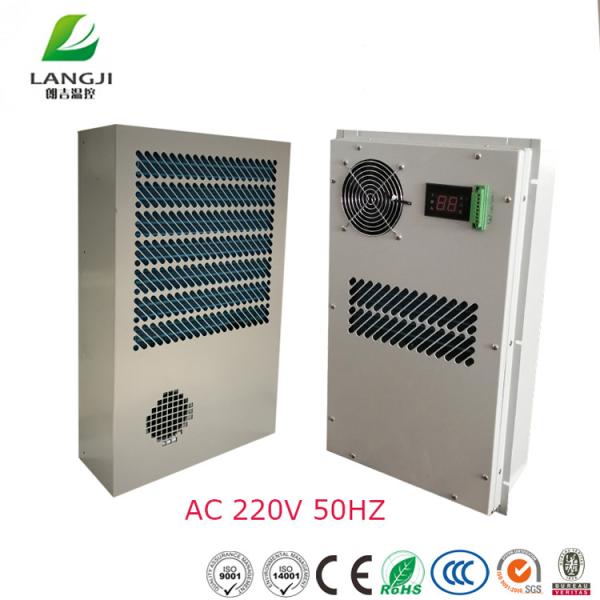

300W Outdoor Cabinet Air Conditioner

300W Outdoor Cabinet Air Conditioner
